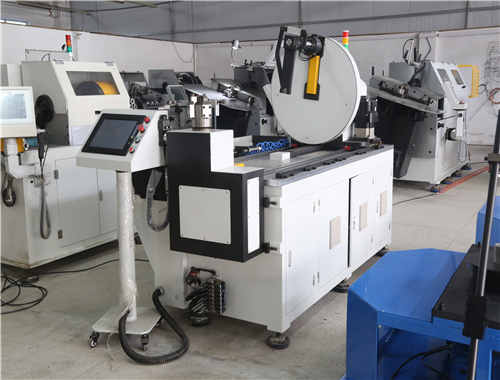

CNC turntable wire bending machine, this machine is equipped with an automatic loading and uploading system, which can solve the problem of too thick pre-cut wire's automatic bending, especially can solve the parts tail end is too short's problem. Particularly suitable for bending the thickening wire of car seat frames and supermarket carts, etc.
Turntable wire bending machine | NER3D-R |
Shape of production | 3 D |
Processing wire diameter | Soft wire ＜12.0mm |
The highest Feed velocity | 50 m/min |
The largest feed limit one time | 1200 mm |
Feeding way | small car |
Time of one bend average | 1.0s |
Maximum bending radius | 50mm |
Bending speed | 180deg/2.0s |
Input data style | Data input |
Electric capacity | 10 KVA |
Weight | 1800 KG |
size：L*W*H | 2900*1600*1900 |
