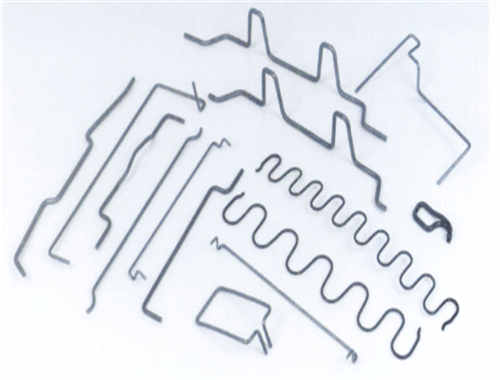

NER3D-S Model 3D CNC specialized wire bending machine applied to Car seat frame, square snake spring, special shape spring, simple artware and so on.
Processing wire diameter: 2 - 7mm & 2 - 10mm
Processing pipe diameter: 2 - 8mm
3D CNC specialized wire bending machine Specifications list | |
Processing wire diameter | 2.0-7.0mm soft wire |
The highest Feed velocity | 50 m/min |
The largest feed limit one time | 900 mm |
Feeding way | small car |
Time of one bend average | 0.5s |
Maximum bending radius | 50mm |
Bending speed | 180deg/0.5s |
Feeding speed | 400mm/1.0s |
Input data style | Data input |
Electric capacity | 2.0 KVA |
Net Weight | 500 KG |
Size : L*W*H | 2000*750*1400mm |
