1-All parts are Famous, as SANYO
2-Bend 8 Radius one time & Platform protection

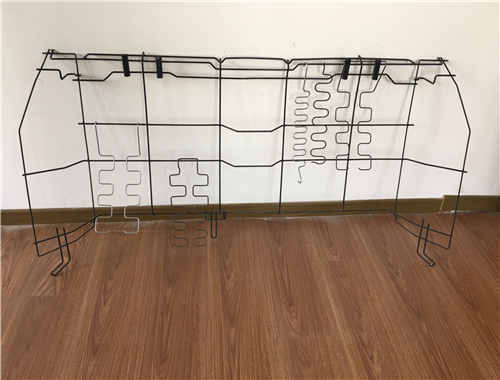

3-Could bend all 2D & 3D figures
4-Working range 1.5 - 13mm

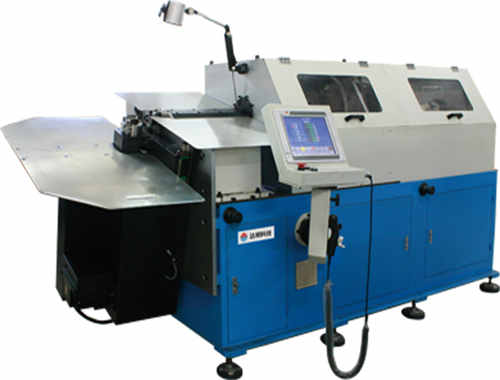

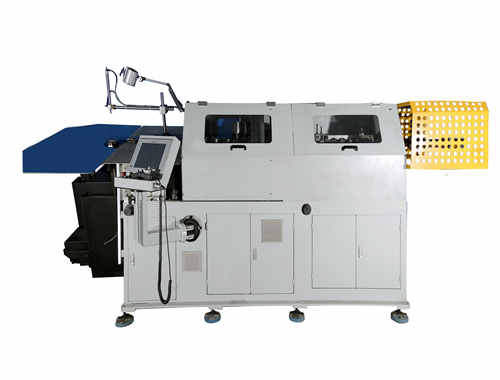

7 Axis 3D Automatic wire forming machine configuration list | |||
Aluminium & low carbon round | 1.5-10.0mm | ||
Stainless steel Wire material | 1.5-8.0mm | ||
Main Parts | Origin | Brand | Model |
Feeding shaft + servo motor | Japan | SANYO | 4.5KW |
Rotation axis +servo motor | Japan | SANYO | 2.7KW |
Bending shaft + servo motor | Japan | SANYO | 2.7KW |
The core + servo motor | Japan | SANYO | 2.7KW |
Cutting motor + servo motor | Japan | SANYO | 2.7KW |
Mould lift+servo motor | Japan | SANYO | 2.7KW |
Platform lift + Servo motor | Japan | SANYO | 2.7KW |
Bending shaft reducer | Germany | Neugart
| |
Feeding shaft reducer | Germany | Neugart
| |
Ball screw
| Japan | Kuroda
| |
LM rail system feed | Taiwan | HIWIN | |
Electrical apparatus control system | Researching by ourselves | (CPU:INTEL P3 800 DDR256M 40G )Each template is a company controlled information and software | |
Electric parts | Japan | OMRON | Inductor：TL-W5MC1 Relay：MY2NJ air switch NF30-CA/39 |
Control panel（Touch screen） | Korea |
Samsung
| 12.1 Touch screen |
