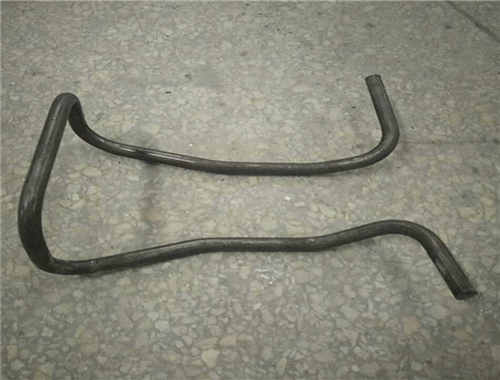

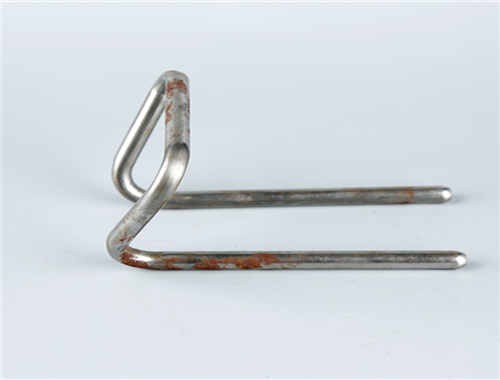

It can both bend the wire and pipe, can be bi-directional bent and no interference, it is especially suitable for the efficient bending of car seat headrest poles and fucniture metal parts bending and so on.
Model | NER3D-16 | ||
Carbon/Titanium steel/Stainless steel Wire diameter Carbon/Stainless steel Tube diameter | Max. 13mm Max. 16mm | ||
Feeding Speed | 900 mm/sec | ||
Twisting head off 90 ° minimum time required | 0.1s | ||
Reverse the core conversion minimum time required | 0.1s | ||
Lane 90 ° minimum time required | 0.08s | ||
Maximum speed lifting platform | 333mm/sec | ||
Maximum lifting speed reversing mechanism | 250mm/sec | ||
The maximum feed stroke | Unlimited | ||
Feeding mode | Wheel Wire | ||
Minimum bending radius | 15mm | ||
Maximum bending angle | 190° | ||
Each number can be set bend | Unlimited | ||
Set the number of files | Unlimited | ||
Working speed | Bending speed | 180°/0.5sec | |
Rotation speed | 360°/2sec | ||
Feeding speed | 700mm/1sec | ||
Accuracy | Bending angle | ±0.05° | |
Rotation angle | ±0.05° | ||
1. Numerical formula 2. Teaching style | |||
Controller | Industrial Computer | ||
CNC Data Input | Touch screen input+Handwheel input | ||
Bending（C）servo motor power | 2000W | ||
Rotation（B）servo motor power | 400W | ||
Feeding（Y）servo motor power | 1000W | ||
Electrical Capacity | 10KVA | ||
Machine weight(KGS) | 1800 | ||
Machine size L*W*H(MM） | 2900*1600*1900 | ||
